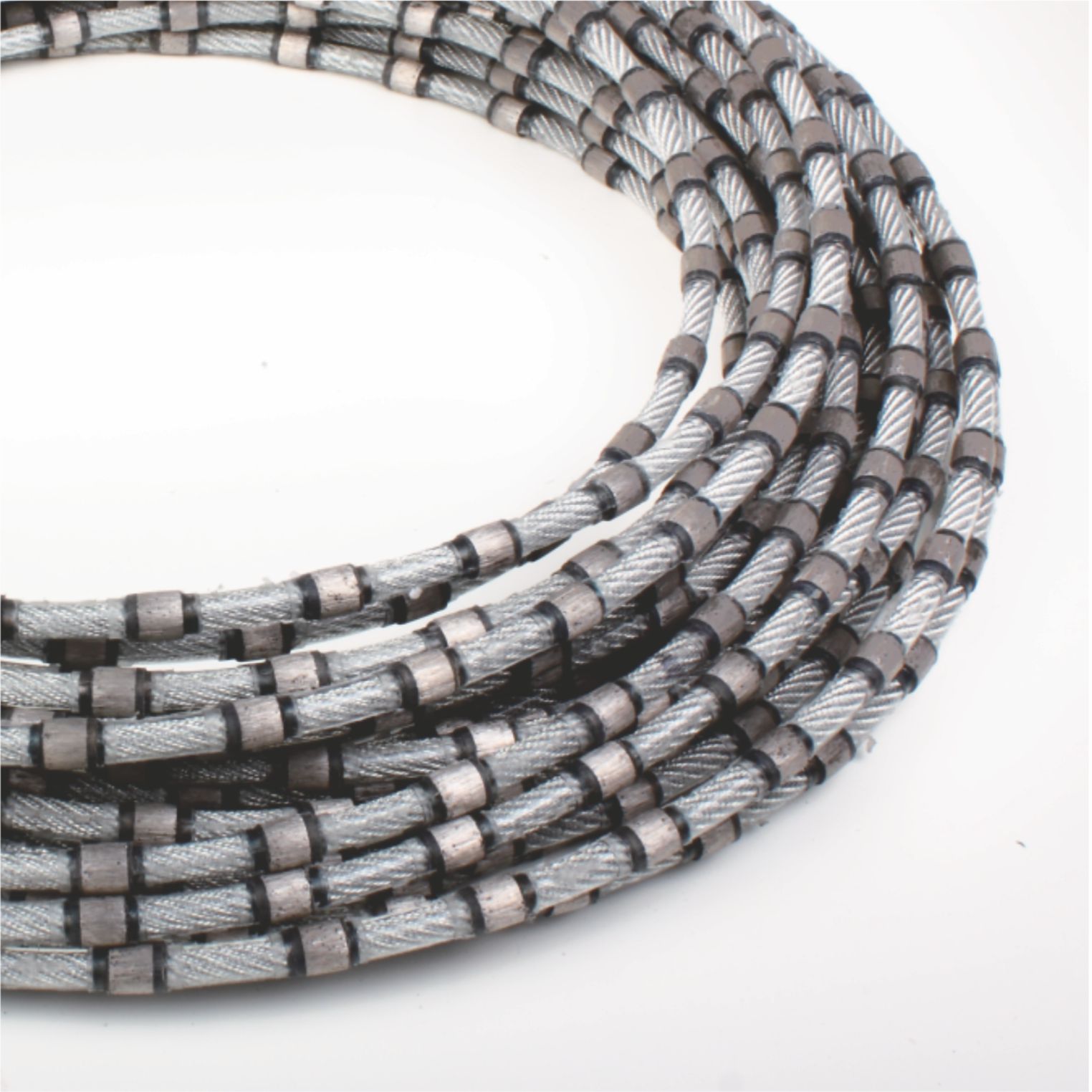

MULTI WIRES

MULTI WIRES

Krishna Engineers wires can be customized and suitable as per requested for the stone by customer with endless loop. Krishna Engineers wires will last long with good service and support.

TECHNICAL DATA

Diameter :6.3mm

No of Beads / meter : 37pcs

Fabrication : Plastic with endless  loop

We're here to help you get started in the right direction with your project.

Get a Quote

Average Sawing Parameter

Length in Mtr.

Wire Speed

Class 1-3 Granite Down Feed

Class 3-5 Granite Down Feed

Class 5-7 Granite Down Feed

2.5

26-30 m/s

22-25cm/hr

20-23cm/hr

16-18cm/hr

3.0

26-30 m/s

20-23cm/hr

18-21m/hr

14-16cm/hr

3.5

26-30 m/s

18-21cm/hr

15-18cm/hr

11-13cm/hr

For The Best Performance

Maintain the machine regularly by checking its rubber liners of pulleys, hydraulic tension and lubrication

The smallest block length should be mtr. Length

Water flow must be maintained with less than 30% dust particles

Check the condition of the wires after each cut.

Do not put wire on the machine with crimped joint.

Cut the block from diagonal point instead of straight surface.
