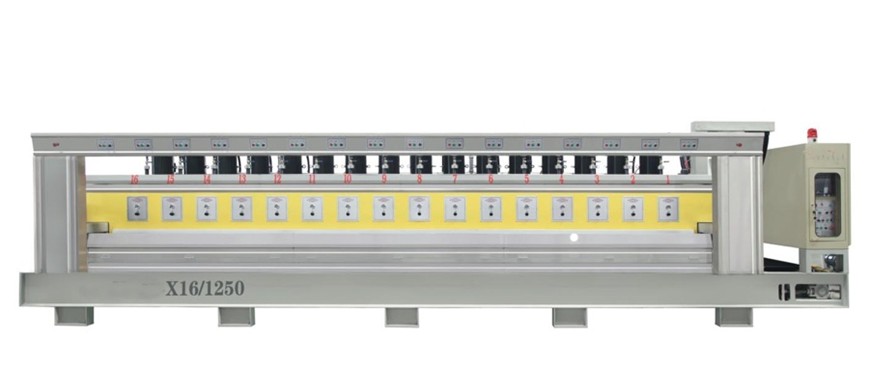

KETE Granite Polishing Line (16 Head)
Complete automatic polishing system for high-volume granite processing
- 16-head polishing system
- 500 – 2200 mm slab width
- Up to 185 KW power
- Fully integrated line (loader to unloader)
Complete Line Includes
- 1 Hydraulic Loader
- 1 Electric Motorized Table
- 1 16-Head Polishing Machine
- 2 Manual Conveyor Tables with Blower
- 1 Unloader
Processing Specifications
Material & Head
- Material: Granite
- 6-claw Fickert head
Dimensions
- Width: 500 – 2200 mm
- Thickness: 10 – 50 mm
Speed
- Conveyor: 0.5–3.0 m/min
- Cross beam: 10–45 m/min
Consumption
- Water: 30 CBM/hour
- Gas: 16 CBM/hour
Machine Specifications
- Total Power: 185 KW (11 KW per head)
- Machine Size: 11,500 × 4300 × 2250 mm
- Weight: 22,000 kg
- Power Supply: 380V, 50Hz, 3 Phase
- Feeding Direction: Left in, Right out
