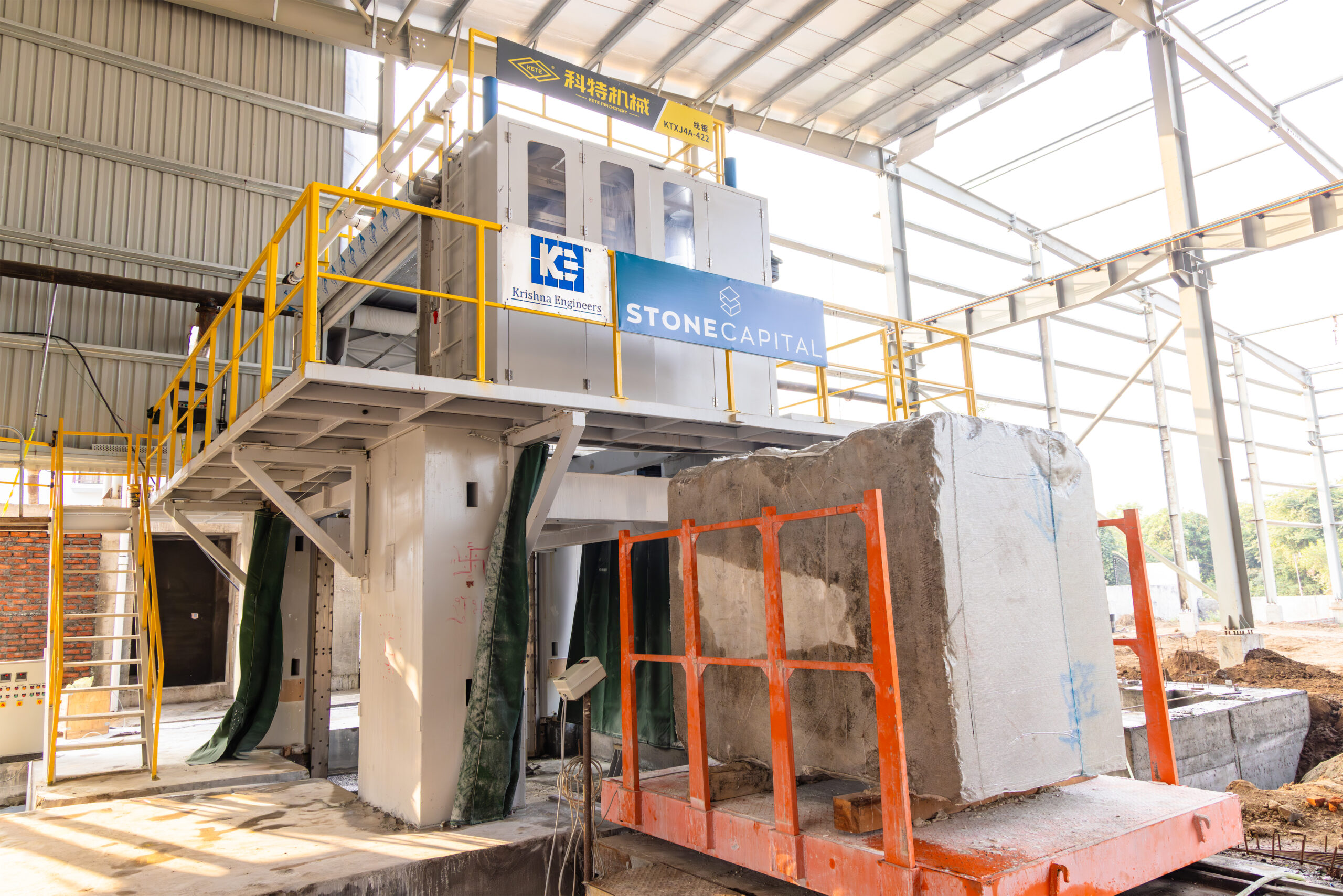

THIN-WIRE MACHINE

0.55mm thin wire for a gang-saw used in marble cutting is a very fine wire typically made from steel or diamond-coated materials. Gang-saws are industrial machines used for cutting large marble blocks into slabs. Here’s an overview of the components and its use

3400×2200×2200 mm capacity

Max Size of Block (L×W×H)

Φ0.3~0.8MM

Diameter of Diamond Wire

20M3/H

Water Consumption

20~30KW/H

Electricity Consumption

KEY FEATURES

THIN WIRE FOR GANG-SAW

Wire Diameter

The 0.55mm refers to the thickness of the wire. A 0.55mm wire is relatively thin and is chosen to create fine, clean cuts without wasting much material.

Material

Most commonly, the wire is made of high-tensile steel to withstand the intense pressure and friction during the cutting process. Some wires are diamond-coated,  especially for cutting harder marble or to improve the longevity of the wire by reducing wear during operation.

Cutting Application

Gang-saws use multiple thin wires (arranged in a series) to slice through a large block of marble surface, helping to reduce wastage and improving the quality of the cut slabs. It is important that the wire maintains tension and strength throughout the cutting process to avoid breakage or poor-quality cuts.

Diamond vs. Non-Diamond:

Diamond-coated wires are often used for harder stones like granite but may also be used for more abrasive marble varieties. These wires help provide better cutting speeds and higher efficiency. Non-diamond wires are typically cheaper but may wear out faster, particularly when cutting tougher stones or working on large-scale operations

TECHNICAL SPECIFICATIONS KTXJ4A-402
Max processable Size of Block (L×W×H)
3400×2200×2200mm
Thickness of Slabs Cut
10~30MM
Diameter of Diamond Wire
Φ0.3~0.8MM
Max Length of Wire
30,000M
Operating Line Speed
0~25M/S
Type of Cutting
STONE UP-RISING
Lifting Speed
0~210MM/MIN
Water Consumption
20M3/H
Electricity Consumption
20~30KW/H
Total Power
300 KW
Trolley Size
3000mm*2100mm
Overall Dimension (L x W x H)
7500 x 5400 x 6800mm
Gross Weight
55,000 KG
