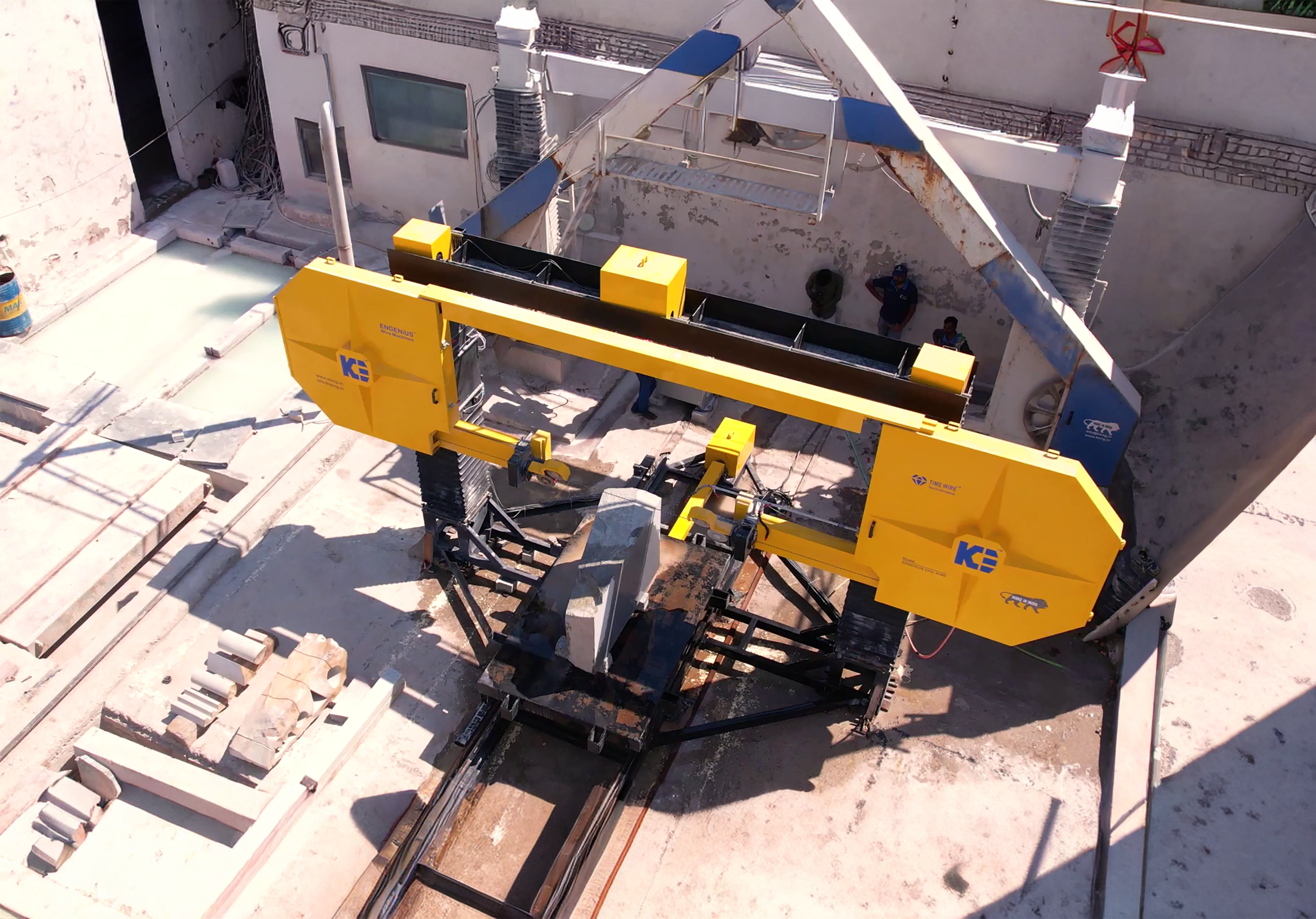

5 Axis WIRE Saw
Application and Concept
A 5-axis wire CNC machine for stone applications is a specialized cutting system that uses a diamond wire and computer-controlled multi-axis movement to shape marble, granite, quartz, and other natural or engineered stones into complex forms with high precision. It is widely used in architectural stonework, sculpture, and monument fabrication because it can cut intricate 3D geometries that traditional saws cannot achieve.
– Frame Material: Heavy-duty steel or cast iron for stability and vibration reduction.
– Machine Dimensions: Varies based on model; typically, around 3000 mm x 2000 mm x 2500 mm (L x W x H).
– Weight: Approximately 6000-7000 kg
– Cutting Width (X-Axis): Typically, between 3000 mm.
– Cutting Depth (Y-Axis): Up to 2000 mm.
– Cutting Height (Z-Axis): Up to 1500 mm.
– Rotary Axis (A-Axis): Rotation capability up to ±360 degrees for complex angle cuts.
– Wire Diameter: Usually 7.3-8.5 mm, depending on material hardness and machine design.
– Wire Length: 16-18mtr
– Wire Speed: Variable, ranging from 0 to 30 m/s, adjustable for different materials.
– Tension Control: Automated wire tension control system for precise cuts.
– Motors: Servo motors or stepper motors for all axes, providing precise movement control.
– Transmission: Ball screw and linear guide ways for high precision and durability.
– Power Supply: 380V/50Hz (or 60Hz), 3-phase for industrial use.
Machine Structure
– Frame Material: Heavy-duty steel or cast iron for stability and vibration reduction.
– Machine Dimensions: Varies based on model; typically, around 3000 mm x 2000 mm x 2500 mm (L x W x H).
– Weight: Approximately 6000-7000 kg
Cutting Capacity
– Cutting Width (X-Axis): Typically, between 3000 mm.
– Cutting Depth (Y-Axis): Up to 2000 mm.
– Cutting Height (Z-Axis): Up to 1500 mm.
– Rotary Axis (A-Axis): Rotation capability up to ±360 degrees for complex angle cuts.
Cutting Wire Specifications
– Wire Diameter: Usually 7.3-8.5 mm, depending on material hardness and machine design.
– Wire Length: 16-18mtr
– Wire Speed: Variable, ranging from 0 to 30 m/s, adjustable for different materials.
– Tension Control: Automated wire tension control system for precise cuts.
Drive System
– Motors: Servo motors or stepper motors for all axes, providing precise movement control.
– Transmission: Ball screw and linear guide ways for high precision and durability.
– Power Supply: 380V/50Hz (or 60Hz), 3-phase for industrial use.
